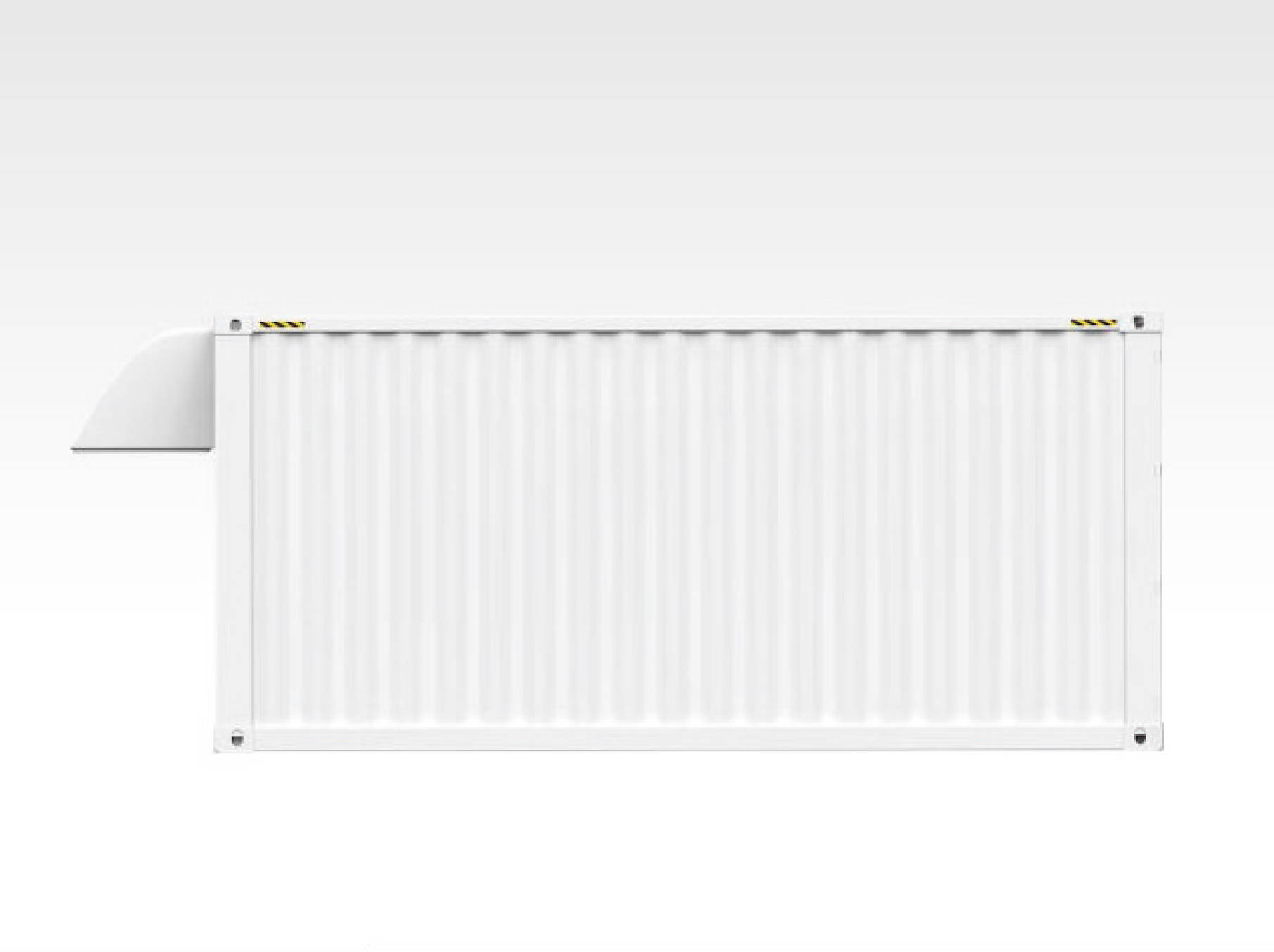

| Model : MLS-H-100 |

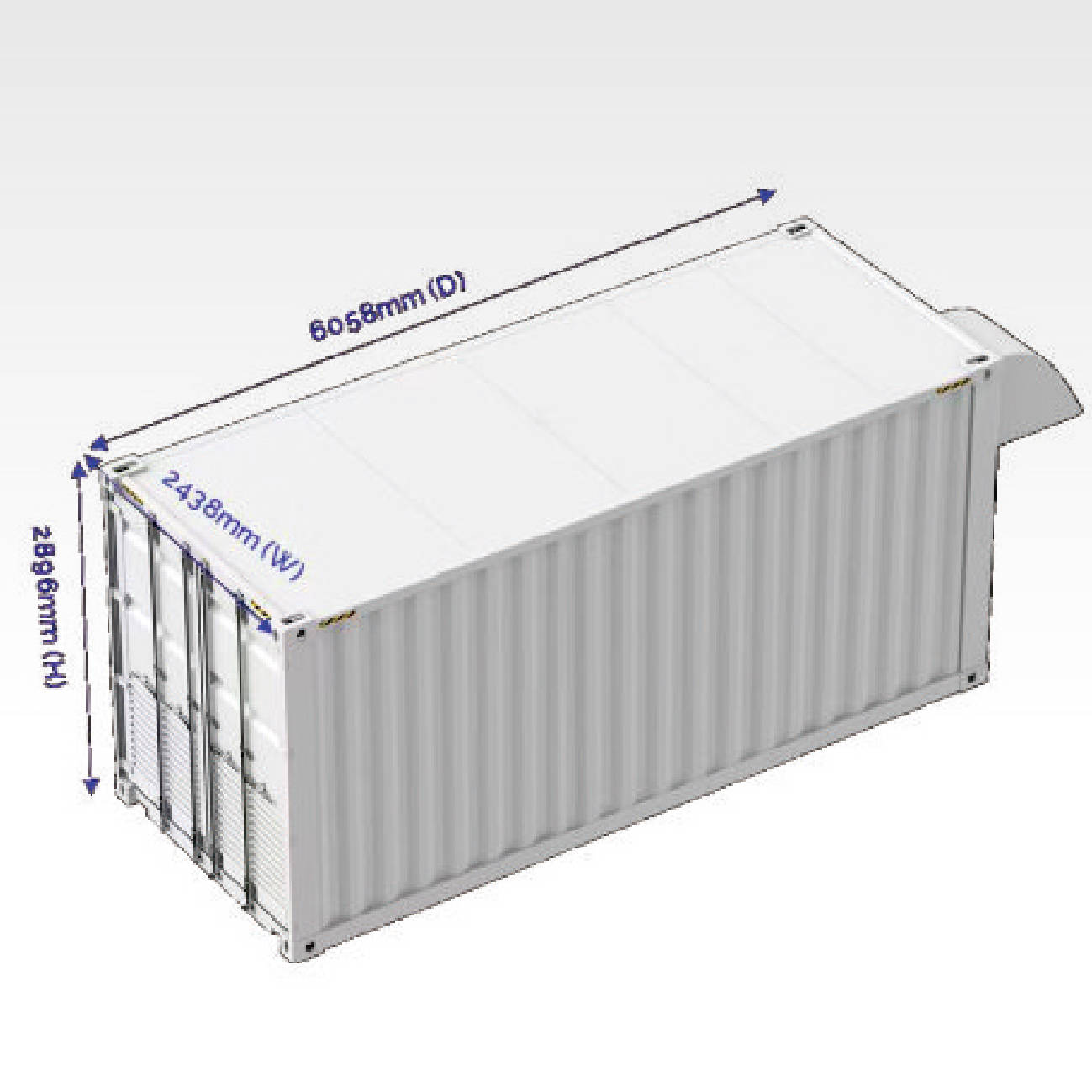

| Size(D*w*H) : 6058mmX2438mmX2896mm |
| Weight(KG) : 6000KG(Empty load) |
| Capacity : 100 units whatsminer M53/M53+ |
| Maximum Load : 1000KW |
| Voltage and Frequency : 3ph~380VAC-480VAC,50HZ/60HZ |
| Cooling Medium : softened water + corrosion inhibitor, pH7~9 |
| Rated Flow Rate : 60m3/h |
| Operation Temperature : -25°C-45°C(Anti-freezing measures should be taken under <0°C) |
| Operating Humidity : 5-95%rh |
| Operating Altitude : ≤3000m，40°C@900m |
| Control system : Intelligent PLC: Constant pressure replenishment and flowcontrol, 10-inch touch screen, Chinese and English language |
| Cooling Method : Closed cooling tower/dry cooler with constant temperature control |
| Connection size : 4-inch chuck 108mm |
| Pipe-to-Equipment Connection : Bidirectional quick coupling, compatible with originalfittings of whatsminer mining server |
| Fire Alarm System : Temperature and humiditv sensor. smoke sensor. Fancontrol system, The pressure drop of the heat dissipationequipment at rated flow should be ≤80 kPa |
